Overview

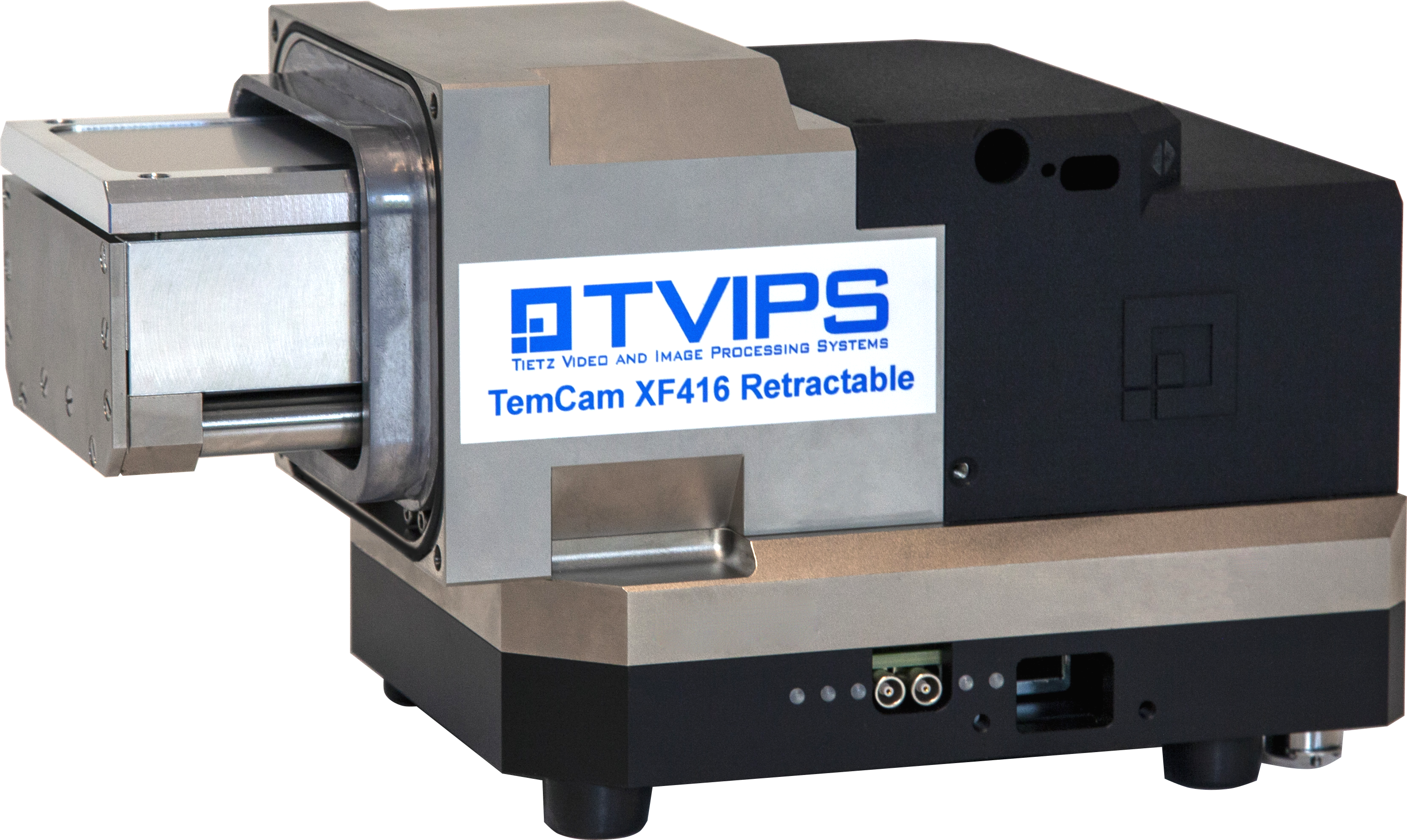

TemCam-F416R is a 16-megapixel CMOS TEM camera for JEOL TEMs, covering a 64 × 64 mm² image area. It combines high sensitivity, fast acquisition speed, and wide dynamic range, and is designed as a modern replacement for classical 4k slow-scan CCD cameras.

Key Capabilities

• 16 megapixel CMOS sensor (4096 × 4096)
• Large 64 × 64 mm² imaging area
• High sensitivity with fast readout performance
• Wide dynamic range for demanding TEM applications
• On-axis, retractable mounting for JEOL TEMs

Applications

• General TEM imaging on JEOL microscopes
• Materials science and life science imaging
• Large field-of-view imaging
• Routine and automated TEM data acquisition
• Replacement of classical 4k slow-scan CCD cameras

Specifications

Sensor type	CMOS
Sensor resolution	4096 × 4096
Pixel size	15.6 µm × 15.6 µm
Field of view	64 × 64 mm²
Digitization	16 bit
Frame rate (full frame)	1.0 fps
Frame rate (reduced)	8.5 fps @ 4k × 1k
Dynamic range	10,000 : 1 (max / noise)
SNR (single 200 kV electron)	12 : 1
Mounting position	On-axis, retractable

Specifications shown are typical values and may depend on configuration.
