Overview

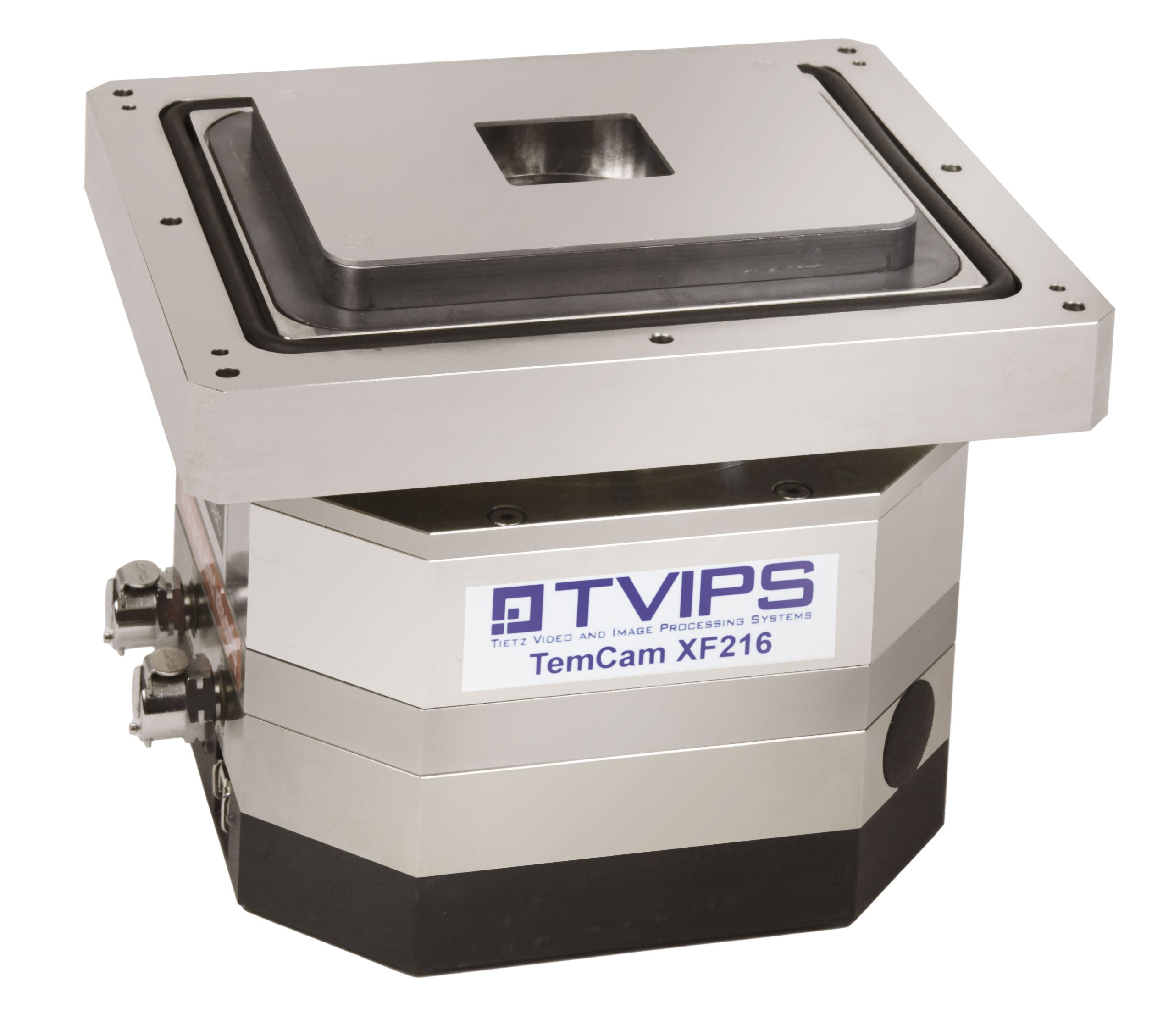

TemCam-XF216 is a compact 2k CMOS TEM camera designed for high frame-rate imaging where space or budget constraints apply. Mirroring key capabilities of the XF416 series, it delivers fast acquisition and high dynamic range for demanding TEM and UHV applications.

Key Capabilities

• Up to 48 fps at full 2048 × 2048 resolution (up to 90 fps in high-speed mode)
• Ultra-high dynamic range using dual readout mode
• High sensitivity CMOS sensor with fiber-optical coupling
• TEC-cooled sensor in vacuum housing
• Optional UHV configuration for LEEM / PEEM systems

System Requirements

• Windows 10 operating system
• Intel Quad-Core CPU
• Optical 40 Gigabit Ethernet interface
• PCI Express ×16 slot

Software

• EM-MENU
• Tomography
• Single Particle Collection
• EM-SPECTRO
• In-situ recording package (disk-based)

Applications

• General TEM imaging
• High-speed in-situ experiments
• UHV systems (LEEM / PEEM)
• Materials science and life science imaging

Specifications

Sensor resolution	2048 × 2048
Pixel size	15.5 µm × 15.5 µm
Field of view	31.7 × 31.7 mm²
Digitization	16 bit
Frame rate (full)	48 fps standard, 90 fps high-speed
Mounting position	On-axis

Specifications shown are typical values and may depend on configuration.
