Cryo Transfer Holder
Built for High-Resolution Cryo-EM, Tomography, and MicroED
Single particle, tomography, and MicroED

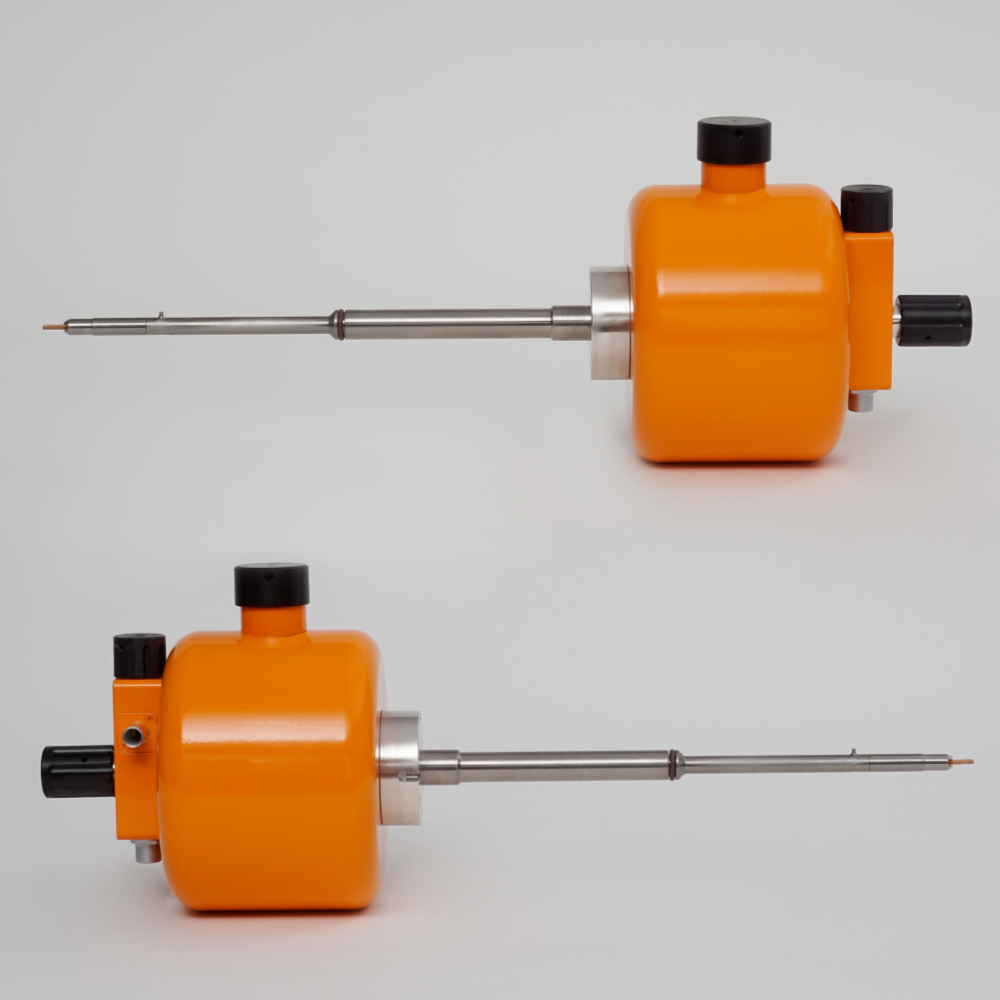

The Simple Origin cryo holders can be loaded with two TEM grids, either standard grids or autoloader grids, for ultra stable cryo imaging.
They provide over ten hours of liquid nitrogen holding time, strong cryo protection during transfer, and a low tip profile for high-resolution work.

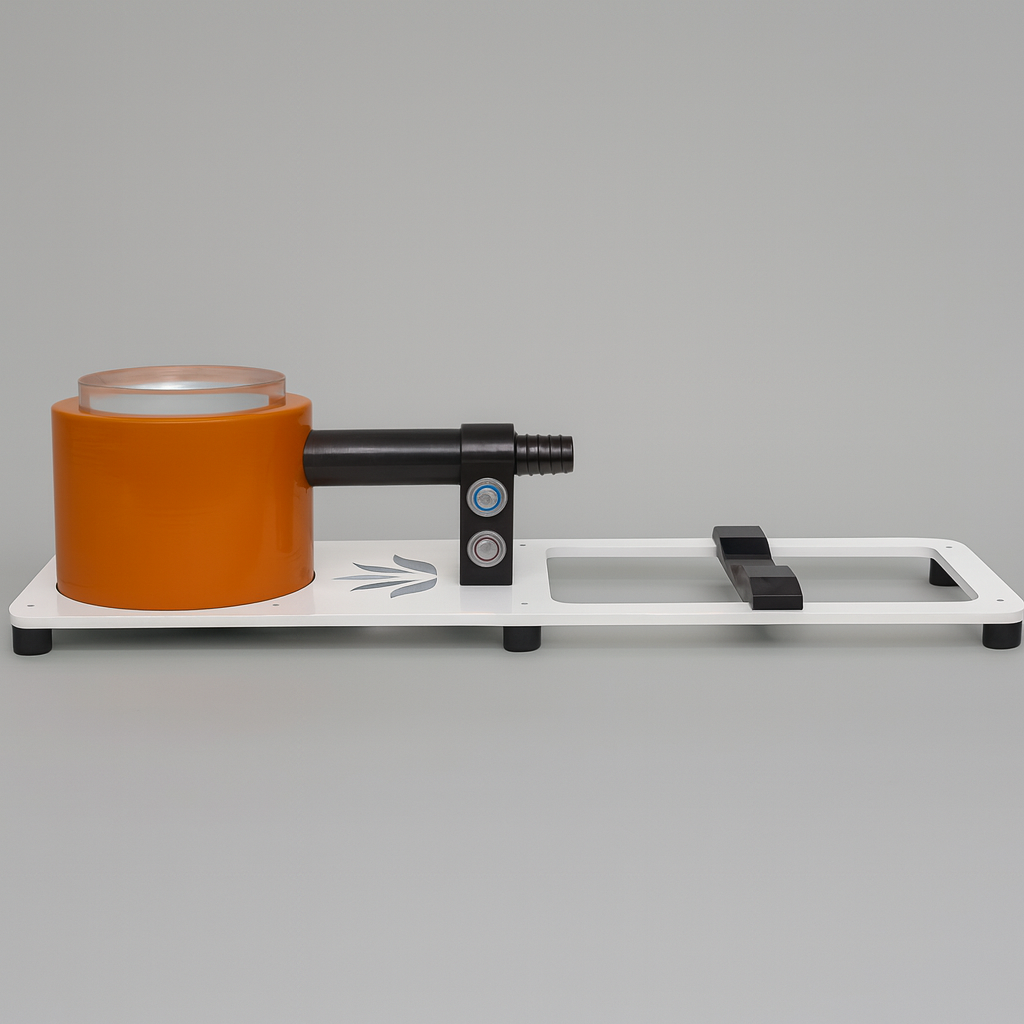

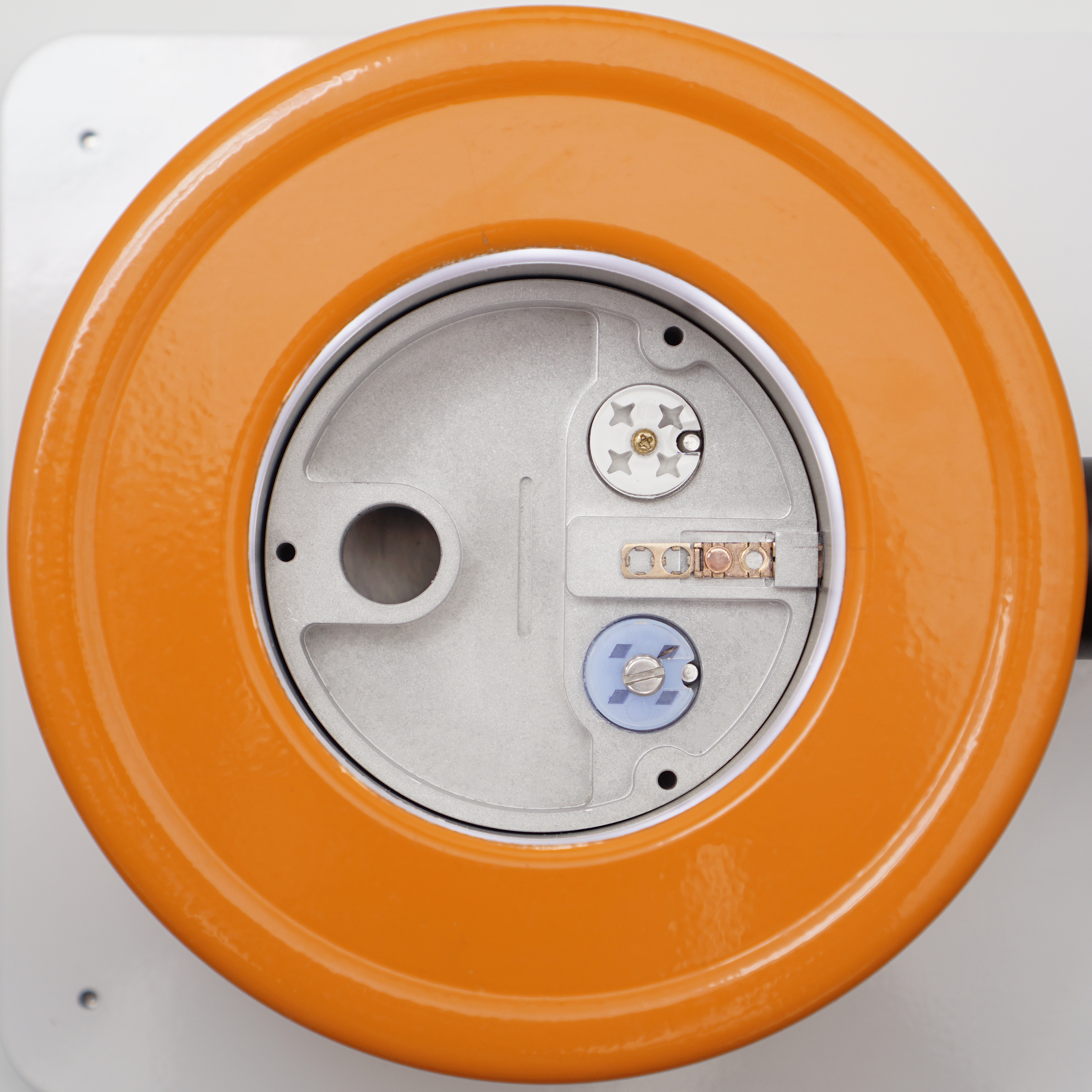

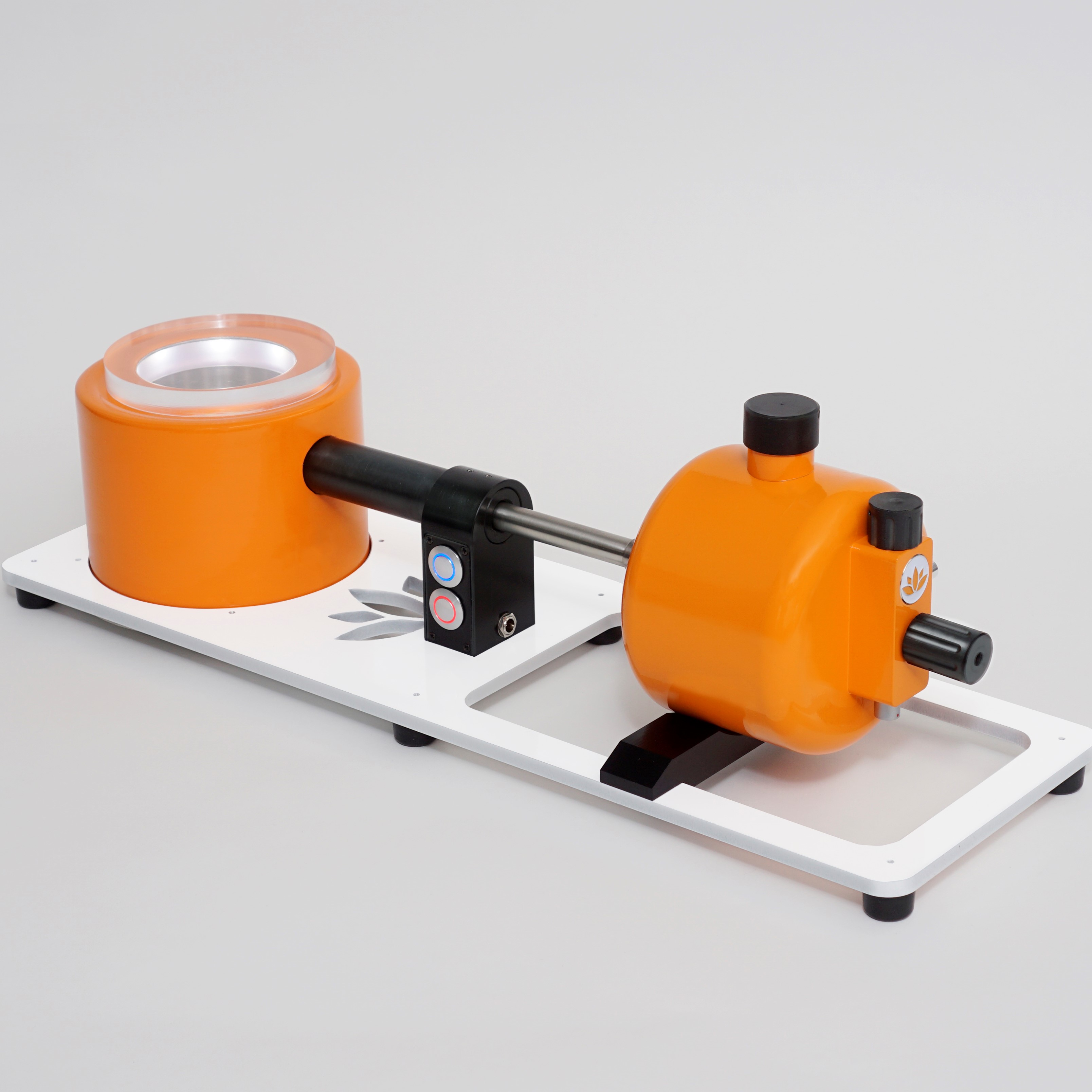

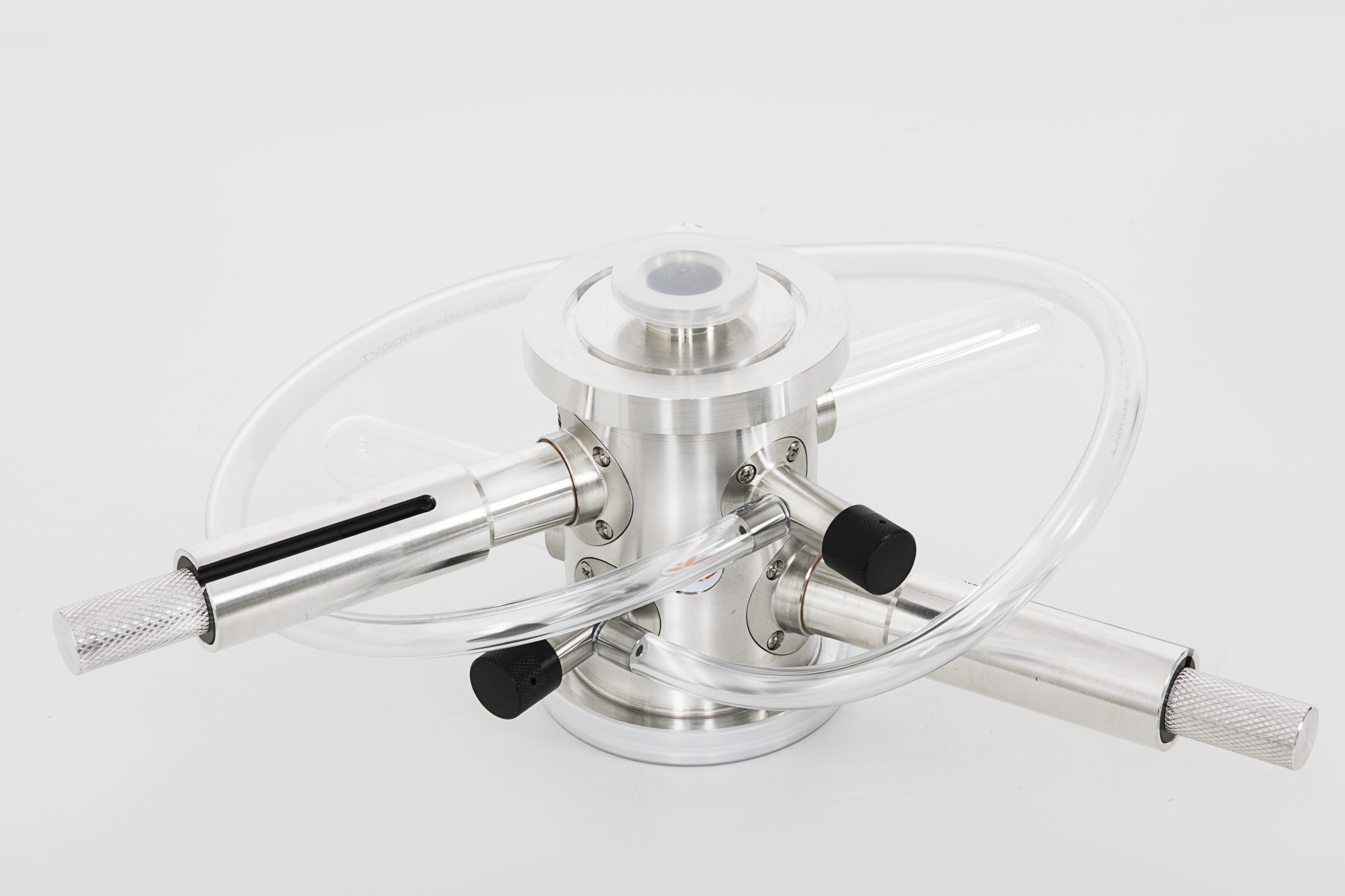

Holder accessories include a workstation with built-in LED and heater, plus separate units for tip temperature readout and activated carbon regeneration.

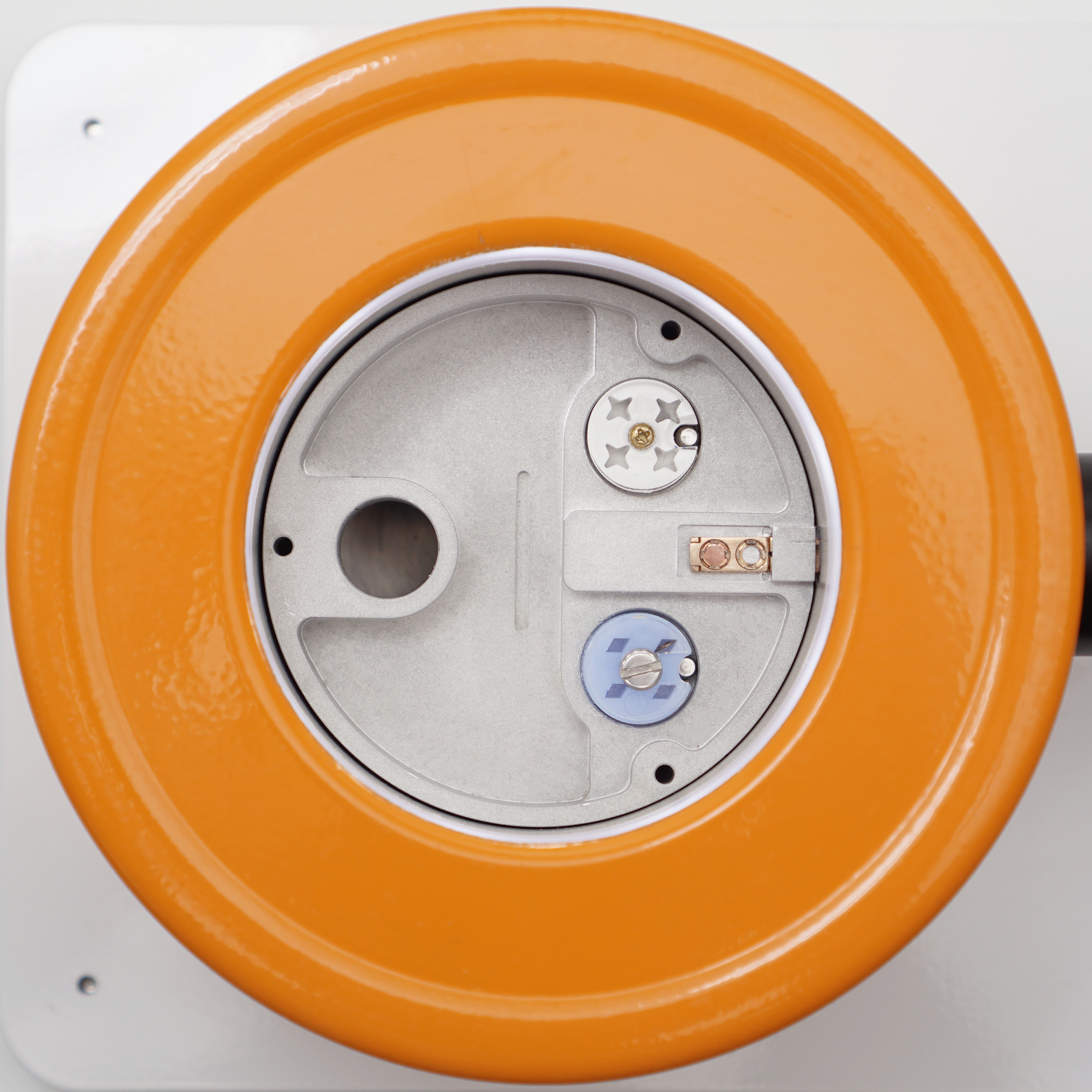

Grid clamping is optimized for ease of use under liquid nitrogen conditions. The axis-symmetric dewar design helps maintain a stable center of mass during tomography data collection.
- Holds two grids (standard or autoloader)
- Over 10 hours liquid nitrogen holding time
- Optimized stability for tomography
- Optional variable-temperature configuration for controlled cryogenic ramps
Optional Add-On: Variable-Temperature Module
The Cryo Transfer Holder can be configured with an optional variable-temperature module for experiments that require controlled cryogenic temperature ramps. The add-on uses a temperature sensor and integrated heater near the specimen to support precise measurement and regulation during imaging. Ability to heat and image the specimen between -175 °C to -100 °C.
Thermo Fisher (FEI) Scientific

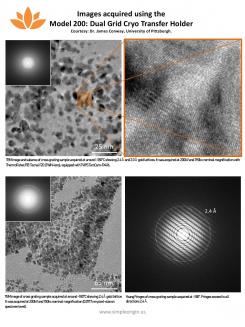

Model 200: Dual autogrid cryo transfer holder
Accepts two Thermo Fisher Glacios, Arctica, and Krios AutoGrids directly for screening in side-entry Thermo Fisher (FEI) TEMs.

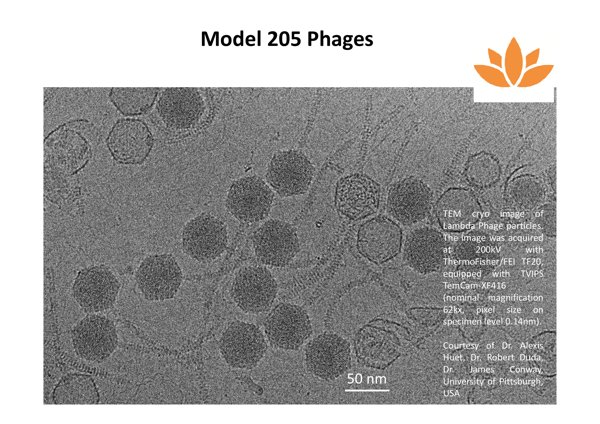

Model 205: Dual grid cryo transfer holder
Accepts two standard 3 mm grids for single particle or tomography data collection in side-entry Thermo Fisher (FEI) TEMs.
Model 201: Dual grid and autogrid cryo transfer holder
Accepts one standard 3 mm grid and one AutoGrid for single particle or tomography data collection in side-entry Thermo Fisher (FEI) TEMs.
JEOL
Model 210: Dual autogrid cryo transfer holder
Accepts two Thermo Fisher AutoGrids directly for screening in side-entry JEOL TEMs.
Model 215: Dual grid cryo transfer holder
Accepts two standard 3 mm grids for single particle or tomography data collection in side-entry JEOL TEMs.
Model 211: Dual grid and autogrid cryo transfer holder
Accepts two standard 3 mm grids for single particle or tomography data collection in side entry Jeol TEMs.
Hitachi
Model 220: Single autogrid cryo transfer holder
Accepts one Thermo Fisher AutoGrid for screening in side-entry Hitachi 7800 series TEMs.
Model 225: Single grid cryo transfer holder
Accepts one standard 3 mm grid for single particle or tomography data collection in side-entry Hitachi 7800 series TEMs.
All holders are provided with a workstation, temperature controller, and temperature monitor.
