Product Overview

Simple Origin is offering the new Cryogenic Heating/Biasing Holder in collaboration with NORCADA*. These holders can be loaded with MEMS chips to enable ultra-stable imaging across a temperature range of −175 °C to 800 °C.

The holders provide long liquid nitrogen holding time and feature a low-tip profile optimized for high-tilt imaging. The axis-symmetric dewar design helps maintain a stable center of mass at high tilt angles.

Available accessories include a loading station, dedicated units for activated carbon regeneration within the cryogenic dewar, and the NORCADA SOLIS software and hardware environment for precise temperature control.

Over 10 hours liquid nitrogen holding time at -175 C.

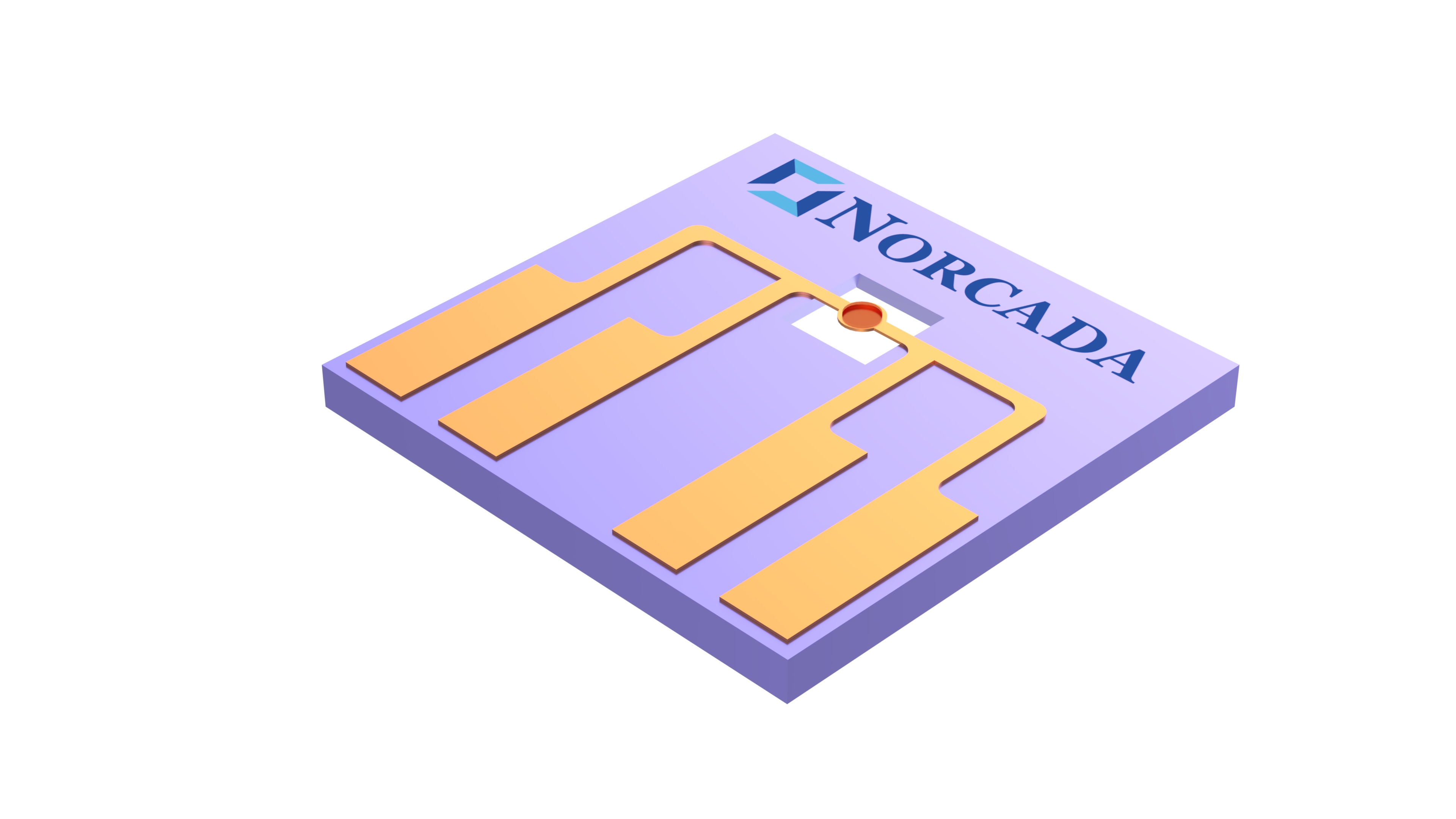

Basic model includes NORCADA MEMS chip with heating mode.

• Resolution: 0.8nm at 800C Tested
• Temperature reading and control feedback in TEM
• Thin film support, holes, and fiducials built into the sample area
• Tested up Room temp to 1300C with excellent temperature uniformity
• Heating/Cooling rate up to 1000C/sec

Heating and Biasing mode available
