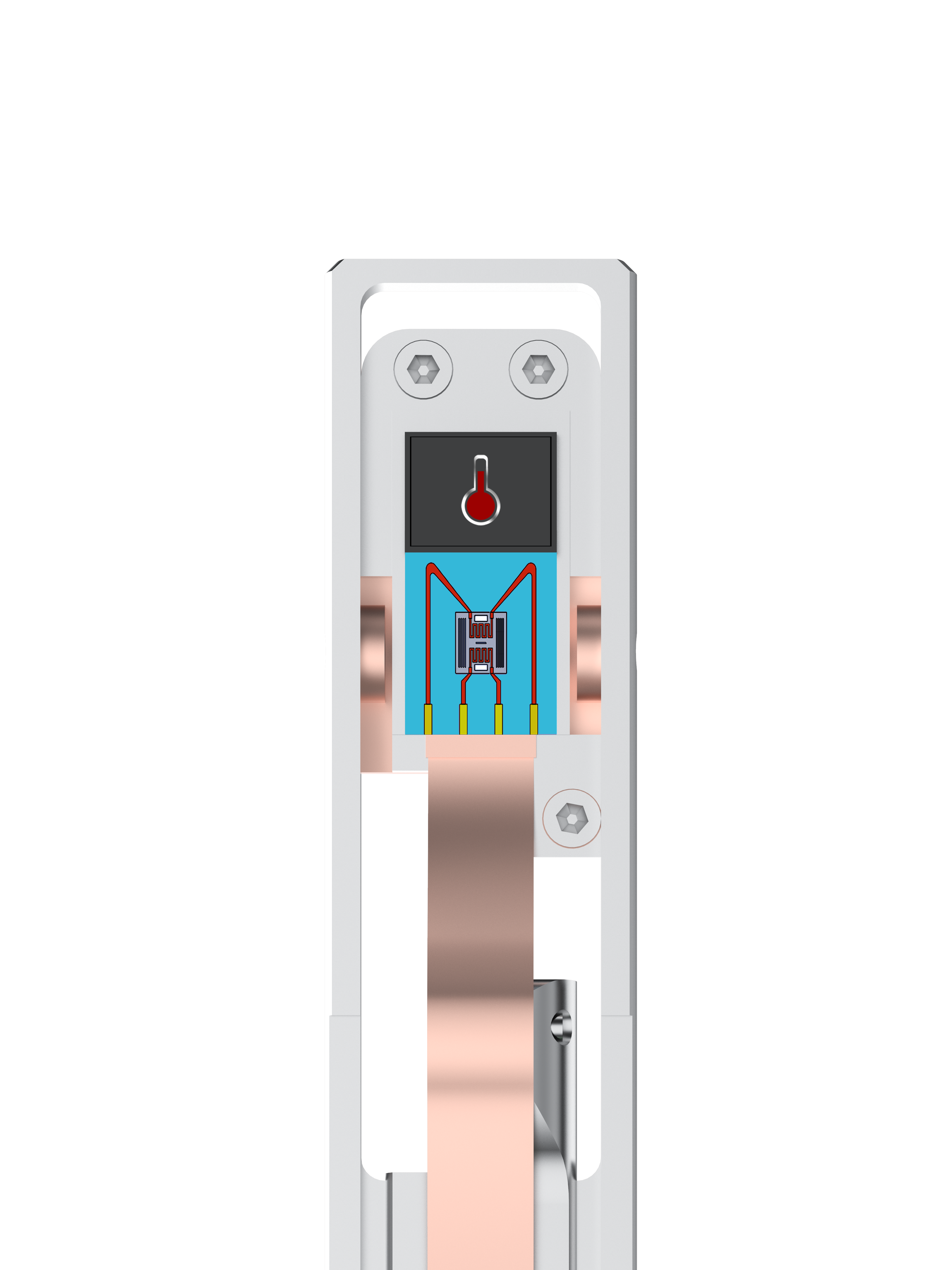

Bestron INSTEMS-T
In situ heating inside TEM
Overview
INSTEMS‑T is an in situ TEM heating platform for temperature‑dependent studies with stable imaging and full double‑tilt capability.
It provides programmable heating with precise temperature measurement using a four‑electrode method, supporting advanced in situ workflows.
Highlights
Unprecedented heating ability
Temperature range RT–1200°C *
Programmable heating
Programmable heating
High heating precision
Ultra high heating precision ±0.1°C *
Four-probe measurement
Four-probe measurement
Double-tilt
α tilt up to ±25° *
β tilt up to ±20° *
β tilt up to ±20° *
Stable atomic-scale imaging
Spatial resolution ≤ 0.1 nm *
Specifications
| Temperature range | RT – 1200 °C * |
|---|---|
| Heating precision | ± 0.1 °C * |
| Temperature measurement | Four-electrode method |
| EDS compatibility | Yes |
| Alpha (α) tilt | ± 25° * |
| Beta (β) tilt | ± 20° * |
| Tilt accuracy | < 0.1° |
| Spatial resolution | ≤ 0.1 nm * |
* Specifications depend on the TEM and the selected mini-lab / microscope configuration.
Applications
- Semiconductor materials and devices
- Li-ion battery
- Device failure analysis
- Thermoelectric materials
- High-temperature deformation
- Creep deformation
- Piezoelectric materials
- Sensors
- Nanodevices
- Dielectrics

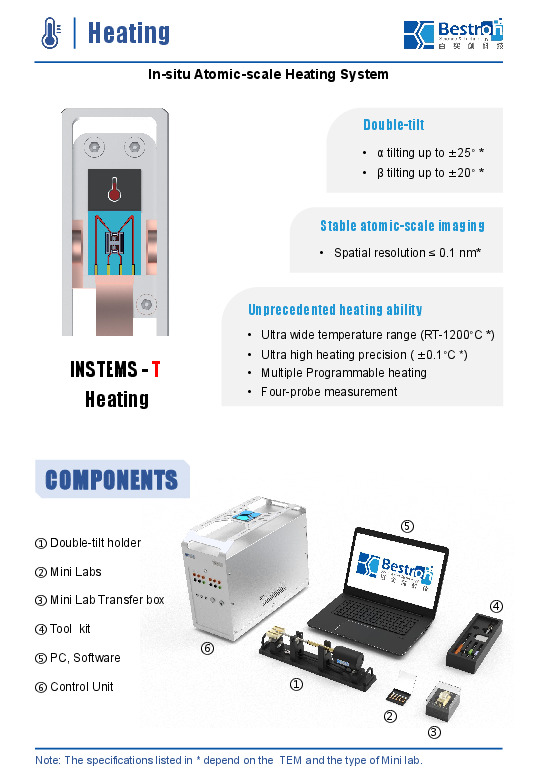

System Components
- Double-tilt holder
- Mini-labs
- Mini-lab transfer box
- Tool kit
- PC & software
- Control unit
